Sensing Layer
Achieves Circuit-Level Visibility into Energy Status
• Real-time collection of voltage, current, power, and energy for both the main supply and individual branch circuits.
• Identifies and categorizes loads as critical, standard, or oversized.
• Expandable with remote metering modules for additional monitoring at grid-connection points, PV systems, and storage units.
• Provides a high-precision data foundation for strategic decisions and efficiency analysis.
Control Layer
Enables Strategic Execution and Safe Control of the Energy System
• Supports circuit-level switching and dynamic load limiting to prevent main breaker overloads and tripping.
• In backup mode, automatically orchestrates power supply based on preset load priorities.
• Ensures "Never-Off" power for critical loads, while automatically limiting or shedding non-critical and oversized loads.
• Manages safe interaction and switching boundaries between grid power, storage, and generation systems.
Platform Layer
Enables Centralized Data Management and Intelligent Decision-Making
• Visualizes circuit-level energy usage and provides historical analysis.
• Estimates backup power runtime and allows for strategy configuration.
• Logs and alerts for events like peak shaving, load limiting, and power restoration.
• Supports both remote configuration and local autonomous operation, balancing security with usability.

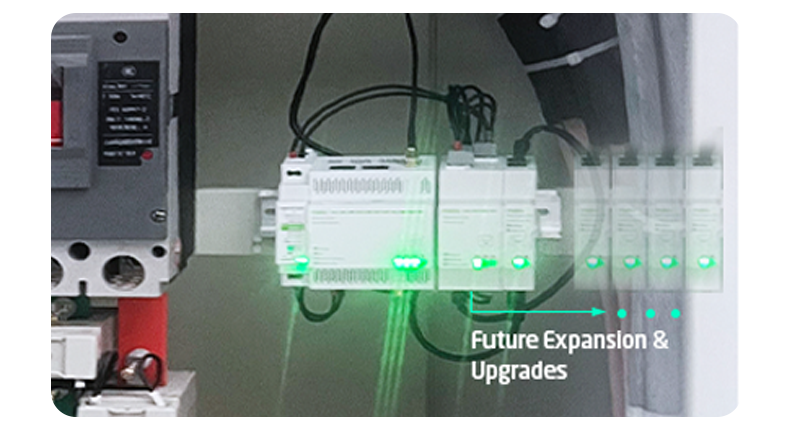

• Provides interfaces for future expansion into broader energy management, carbon tracking, and advanced strategy upgrades.
