SEM1340 Single Phase Multi-function Energy Meter

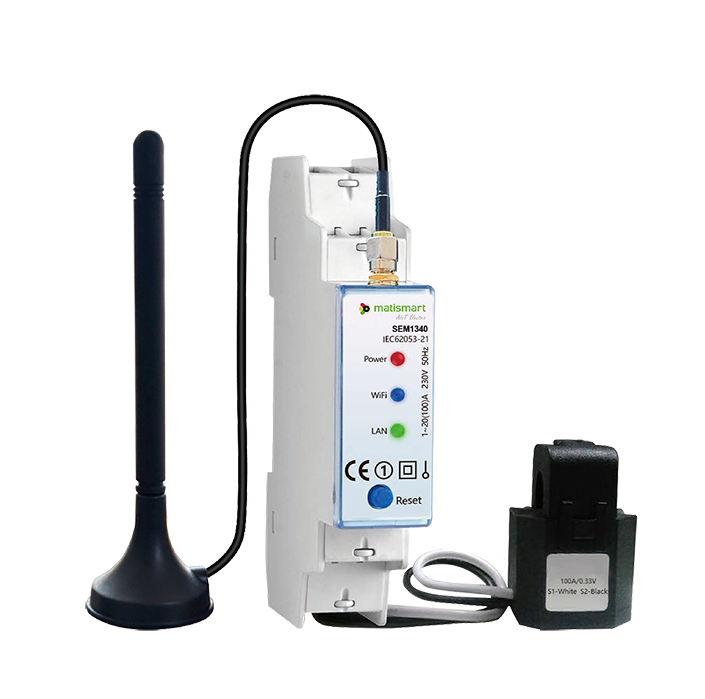

SEM1340 Single Phase Energy Meter

The SEM1340 Series is a compact single-phase multi-function energy meter with WiFi, RS485 Modbus communication, and CT input, designed for bi-directional energy monitoring in residential, solar, and small distribution applications.

• Single-phase multi-function energy metering
• Bi-directional import/export energy measurement
• Primary current: 100A
• Class 1 metering accuracy
• WiFi communication and RS485 Modbus interface
• 330mV CT input for external current measurement
• Compact 1-module width, only 18mm
• Measures voltage, current, power, power factor, frequency, and energy
• Supports active and reactive energy measurement
• Multiple total energy calculation modes
• LED indicators for power, WiFi, and LAN status
• Suitable for DIN-rail installation in meter boxes and distribution boards

Get a Quote

Document

User Manual

Features & Advantages

feature

Compact 1-Module Design

With an 18mm width, SEM1340 saves installation space and is suitable for compact meter boxes and distribution boards.

Bi-directional Energy Measurement

Measures import and export active energy, making it suitable for systems where power flow may occur in both directions.

WiFi & RS485 Communication

Supports wireless WiFi communication and RS485 Modbus, allowing flexible local or remote data access for monitoring systems.

Multi-parameter Monitoring

Measures voltage, current, active power, reactive power, apparent power, power factor, frequency, and energy data for complete single-phase circuit visibility.

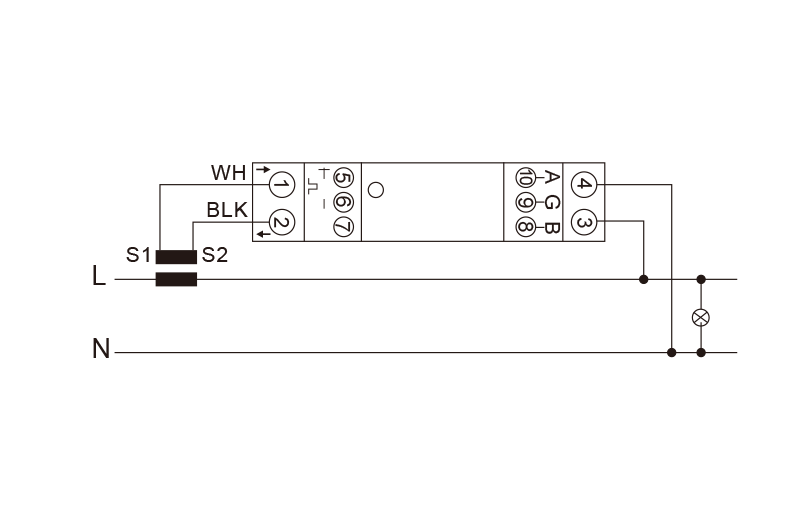

CT Input Installation

Uses a 330mV CT input for current measurement, helping simplify installation in retrofit and space-limited applications.

Target

Application Areas

01
Solar Systems

Monitor import and export energy in single-phase solar inverter systems where bi-directional power flow needs to be measured.
02
Residential Monitoring

Track household energy consumption, power parameters, and circuit-level electricity data through WiFi or RS485 communication.
03
Distribution Boards

Provide compact single-phase metering for small distribution boards, meter boxes, and low-voltage terminal circuits.
04
Energy Retrofit

Add energy monitoring to existing electrical systems with compact DIN-rail installation and CT-based current measurement.
