Smart Power Distribution Unit

MT99-iIPDU

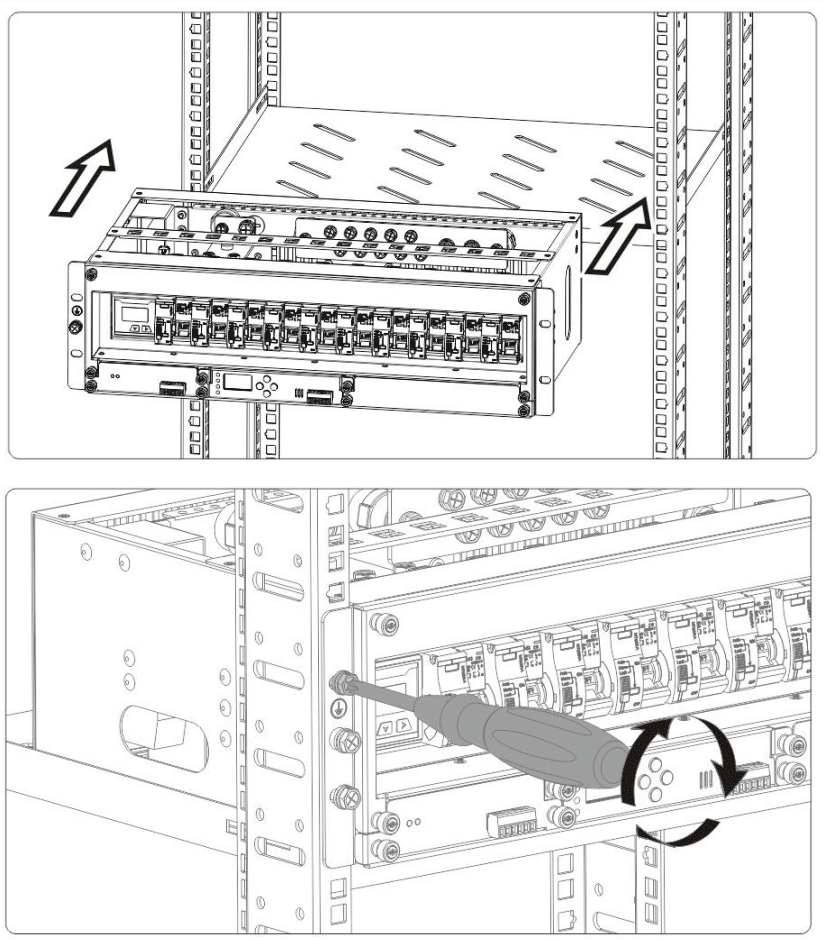

The DC power distribution unit system (hereinafter referred to as the system) adopts a modular design, which is composed of a DC power distribution unit, a branch power off and a branch metering part. The installation type is a standard 3U rack installation. The system is suitable for base station operators such as China towers, China telecommunications, China Mobile, and China Unicom.

Specification Product pictures Data download

Technical Parameter
Manual / Auto	Yes
Open Safety Padlock	Yes
Open and Cose Status Query	Yes
Open / Close	Host computer control / platform control
Lock / unlock	Host computer control / platform control
Automatic Reclosing	Enable can be set
Timing Open and Close Settings	Yes
Backup Power Type Setting	Yes
Oil Generator Service Settings	Yes
Exemption Period Setting	Yes
Electrical Characteristics
Frame Size	63A 125A
Circuit Breaker Shell Frame (A)
Rated Working Voltage (Un)	DC24V ~ DC48V
Rated insulation voltage (Ui)	300V
Rated Frequency	50Hz 60Hz
Standby Power Consumption	≤ 1.2W
Mechanical Properties
Open Time	0.1s
Close Time	0.2s
Mechanical Life	20000
Environmental Characteristics
Operation Temperature	-25℃ ~ +55℃
Storage Temperature	-35℃ ~ +65℃
Relative Humidity (Non-condensing)	5%-95%
Highest Altitude	2000m
Protection Grade	IP20
Communication Parameters
Baudrate	Default 9600 can be set
Check Digit	No verification
Data Bit	8
Stop Bit	1
Device Address	Factory default address 1
