Smart Circuit Breaker

Features

Individual Device

This system is a kind of "all-in-one device", which integrates smart meter breakers, protection, remote control, communication, etc. It includes single-phase two wires and three phases four wires, and the rated current is up to 100A. Based on MT61GP smart circuit breaker, we developed a system called "Smart Power Management Platform" which is mainly used for smart electrical safety, metering and billing management, and smart power monitoring management.

Minimum Space Requirement

Compared to traditional 2P and 4P MCB, it only has an extra controller of 36mm width.

Easy to Installation

The device can be mounted in 35mm Din Rail very easily and individually.

Metering

Active and reactive energy metering (accuracy: class 1.0) Respective Measurement of Forward / reverse active energy (Programmable)

Maximum demand (MD) Measurement

Multi-tariff Measurement: 4 tariffs (Sharp, Peak, Flat, Valley) and 24-hour shifts & automatic Switch to the other standby tariff 12 monthly billings record (data item programmable)

7 digits

Data Frozen: daily, weekly, monthly, and quarterly data frozen and transferred to the cloud server

Strong Anti-tamper Functions: Electricity theft detection, terminal cover locked, and alarm for opening meter box door

Full Protection

This system includes all the protections: Overload, Short Circuit, Over/Under Voltage, Phase Loss, Unbalance, High-temperature

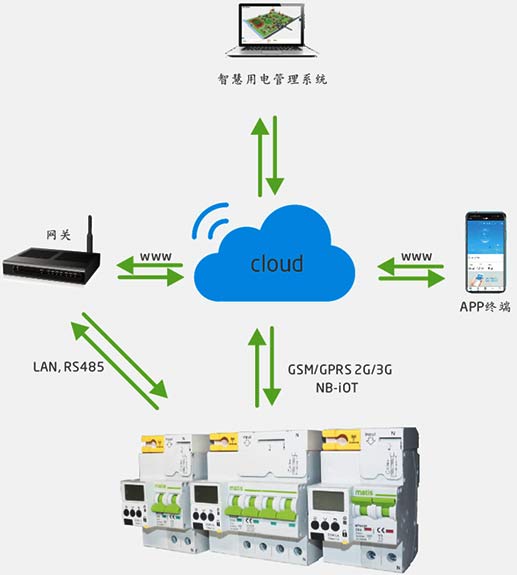

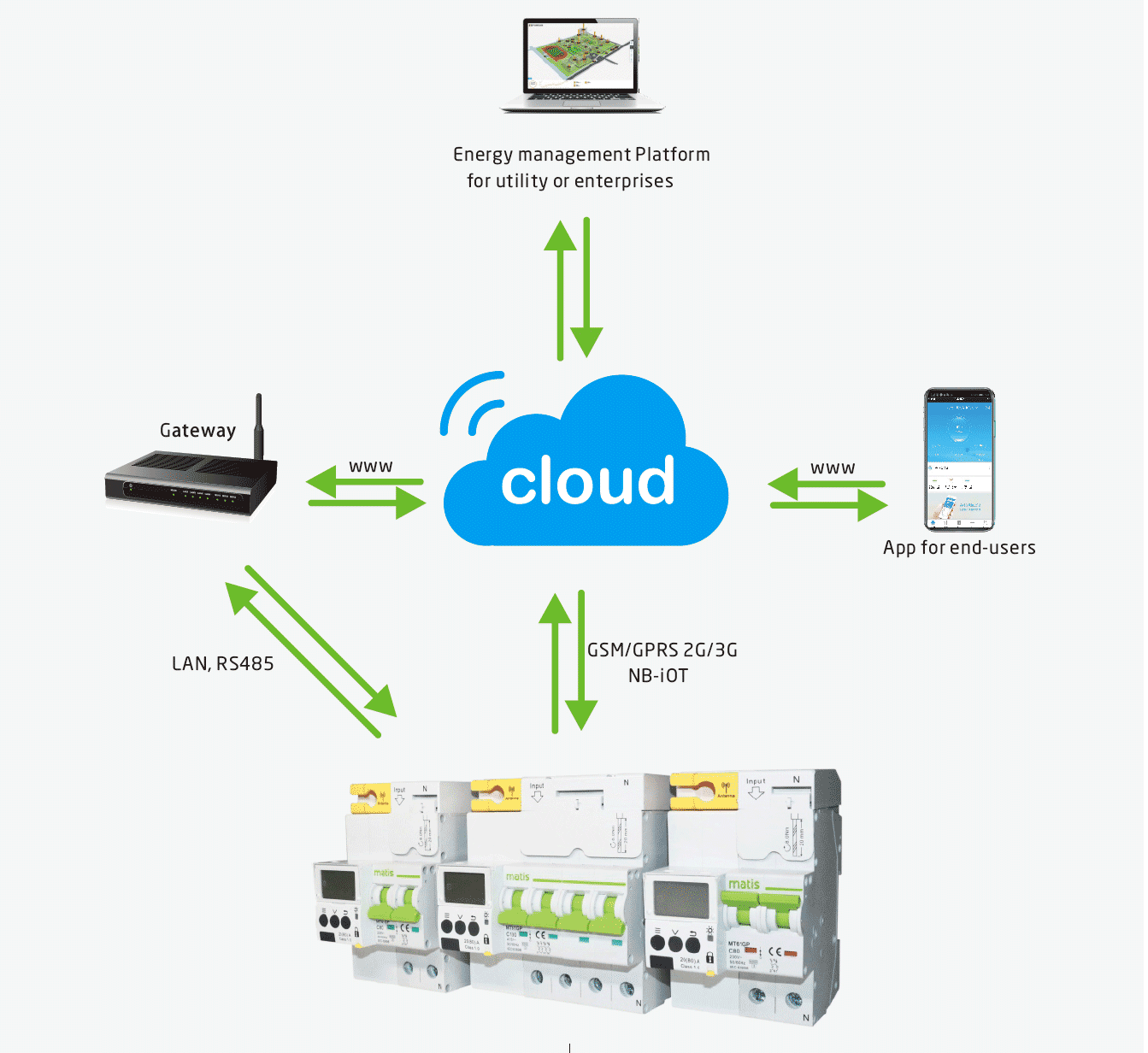

Communication

RS485, GRPS2G/3G, NB-IoT

Protocol

Modbus and MQTT

Electrical Faults Analysis

The device may realize the real-time analysis of all electrical faults: short circuits, earth leakage, overload, over/under voltage, and overheated.

Monitoring in Real-time

The device may make realize real-time monitoring of electrical circuit parameters: Current, voltage, active Power, reactive power, Power factor, Frequency, Temperature

Over/under voltage value and over current protection value limit

The over/under voltage value and over current protection value can be adjustable through a software platform.
